3558
Manufacturer:
Keystone Electronics
Mfr.Part #:
3558
Datasheet:
Description:

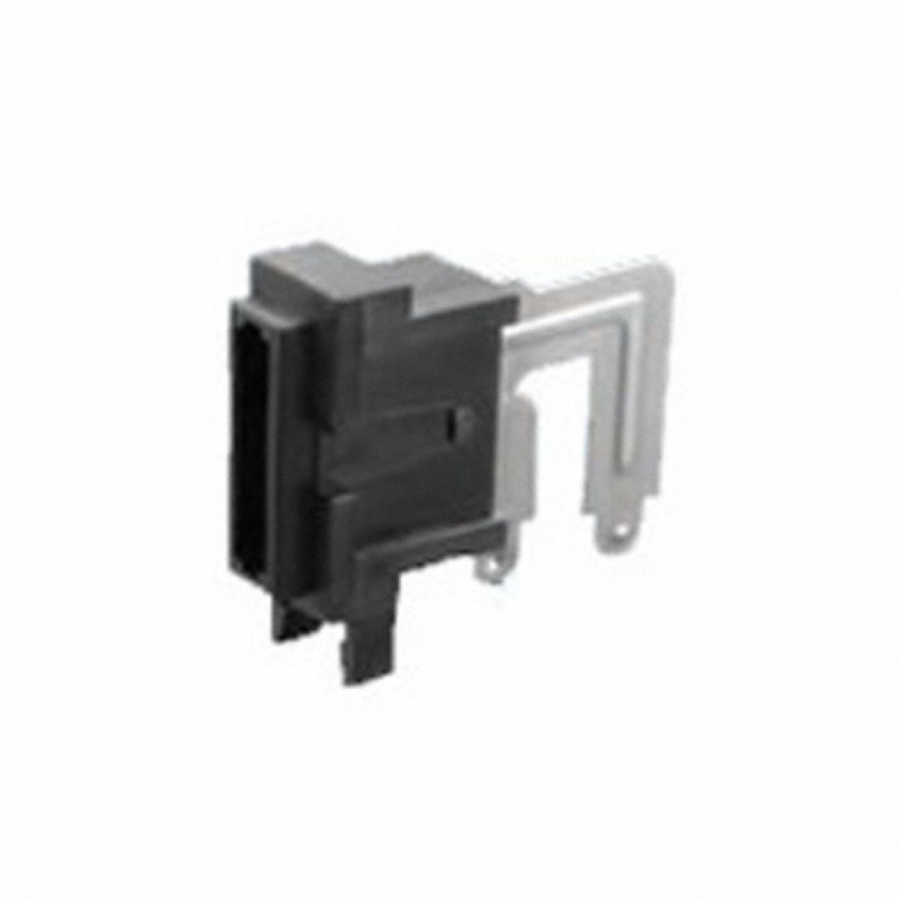

Fuse Holders Through Hole 20 A 500 V Illuminated
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Termination | PC Pin |
| Max Operating Temperature | 145 °C |
| Min Operating Temperature | -50 °C |
| Number of Pins | 2 |
| Material | Brass, Tin |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 33 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 500 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Blade |
| Current Rating | 20 A |
| Number of Circuits | 1 |
| Orientation | Vertical |
| Color | Black |
| Number of Poles | 1 |
| Illumination Type | Illuminated |
| Size | 0.75" L x 0.2" W (19.1 mm x 5.1 mm) |
| For Use With | ATC, ATO |
Stock: 1111
Distributors
pcbx
pcbxUnit Price$2.29696
Ext.Price$2.29696
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.29696 | $2.29696 |
| 10 | $1.74572 | $17.45720 |
| 25 | $1.69057 | $42.26425 |
| 50 | $1.63717 | $81.85850 |
| 100 | $1.58545 | $158.54500 |
| 300 | $1.53537 | $460.61100 |
| 500 | $1.48683 | $743.41500 |
| 1000 | $1.16823 | $1168.23000 |
